U-T60EB arch type clear floor 6t capacity two post vehicle lift

U-T60EB arch type clear floor 6t capacity two post vehicle lift

  • Product Code: Arch Type Clear FloorTwo Post Vehicle Lift

2-Post Lift / 6T Capacity / 75.2” Overall Height

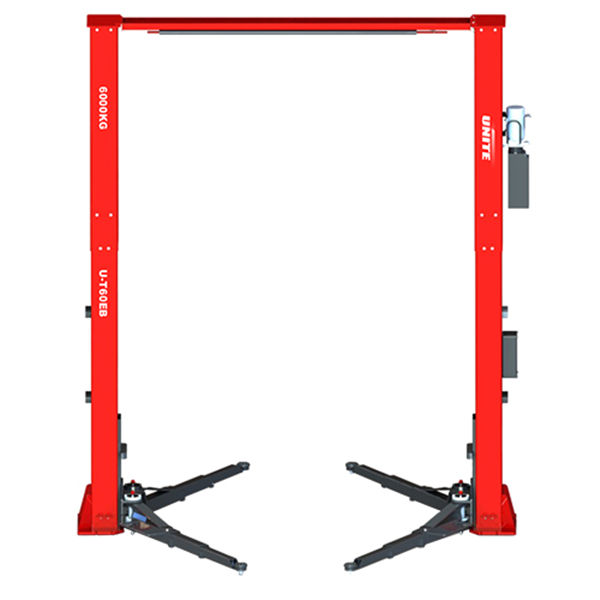

The U-T60EB is an arch-type clear floor two-post lift designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm.

Safety Features:

1. Dual hydraulic cylinders

2. Safety valve for anti-explosion of hydraulic system

3. Synchronization cables

4. Chain protector

5. Easy access grease nipple design

6. Dust protection

2-Post Lift / 6T Capacity / 75.2” Overall Height

The U-T60EB is an arch-type clear floor two-post lift designed for low ceiling garages. The total column height of 1910 mm allows this lift to be installed in almost any professional or home garage with a ceiling as low as110 mm.

Safety Features:

1. Dual hydraulic cylinders

2. Safety valve for anti-explosion of hydraulic system

3. Synchronization cables

4. Chain protector

5. Easy access grease nipple design

6. Dust protection

2 post lift
Product Arch Type Clear FloorTwo Post Vehicle Lift
Product Code U-T60EB
Capacity 6T
Lifting height 1910 mm 75.2"
Min height 110 mm 4.3"
Max car width 2680 mm 105.5"
Power supply 380V 50Hz 3PH 3.0kw
Release Electric Lock Release
Shipping Information Loading QTY : 12 units/20' CTNR 2900*712*933mm (1360 kg/units)
