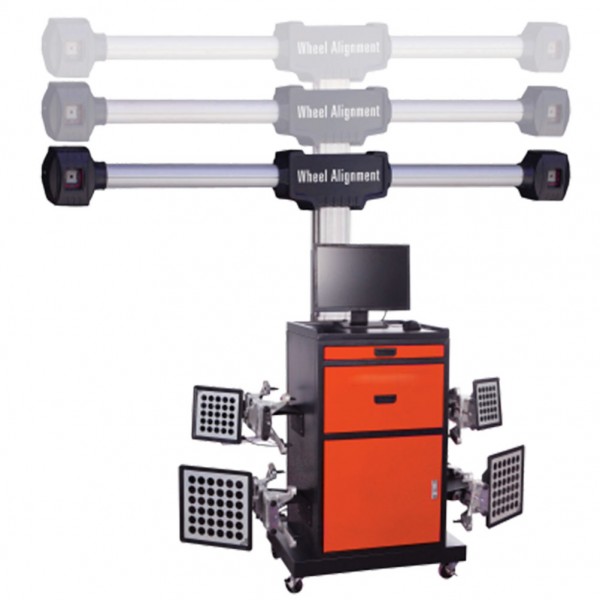

PL-3D-5555U Wheel Alignment Machine

PL-3D-5555U Wheel Alignment Machine

  • Product Code: PL-3D-5555U

Wheel Alignment Machine PL 3D 5555U


Description:

1. The machine in the factory with valid calibration and it is not necessary to perform calibration at the customer site.

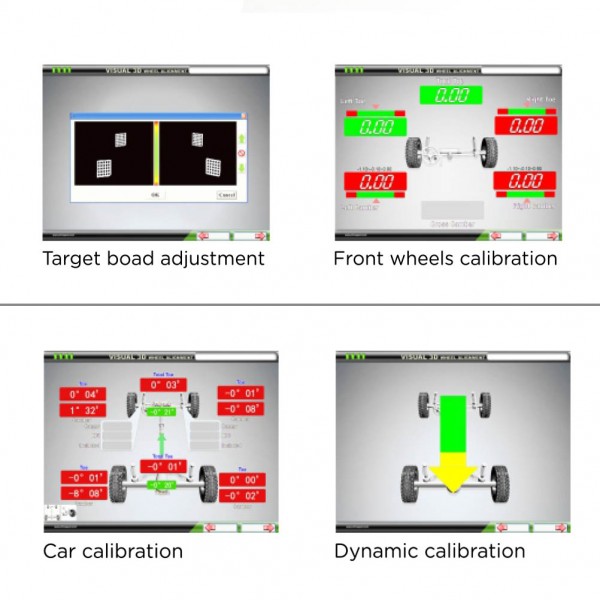

2. Roll the vehicle to complete the compensation, quickly to get the measurement data in two minutes.

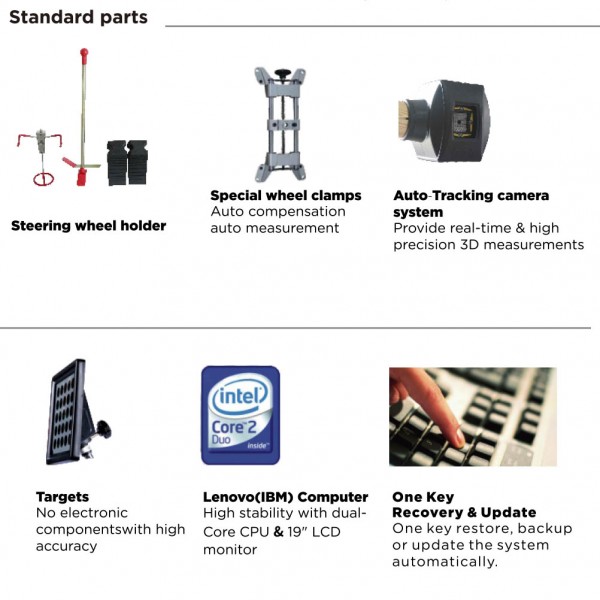

3.  Auto compensation with special clamps and no need to roll the vehicle.

4. Functions of the Track width, wheelbase, tire diameter, caster trail, etc...

5. Free from the influence of ambient light and temperature, stable and reliable.

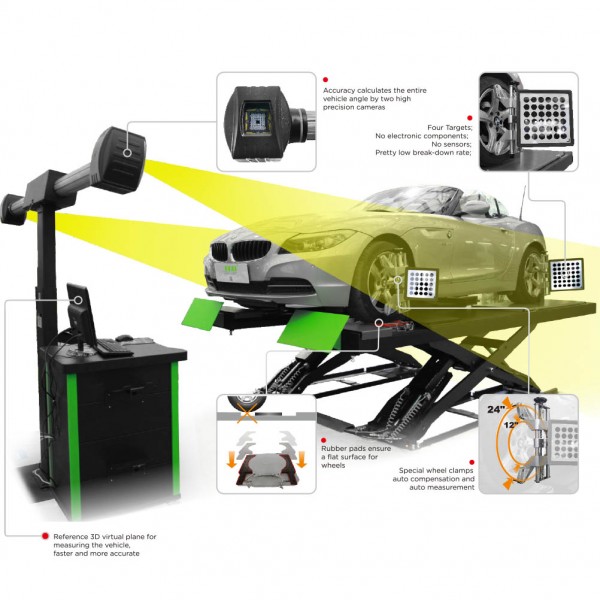

6. The camera bar tracks four targets automatically, more convenient and widespread measurement in less time.


Model No.

Accuracy

Range

Display accuracy

1’ / 0.01/ mm

-

Camber

±2 ‘

±10o

Caster

±6 ‘

±20o

King - Ping(SAL)

±6 ‘

±20o

Toe

±2 ‘

±20o

Set Back

±2 ‘

±5o

Thrust angle

±2 ‘

±5o

Track width

±2mm

1800mm

wheel base

±2mm

3300mm
