The M-BS0300G Bus Washer is a vehicle wash machine designed especially for large vehicles. Installing the system reduces driver workload and work hours, thereby improving the working environment. In recent years, the system has been increasingly adopted in Public transport (also known as public transportation, public transit, mass transit, or simply transit) centers.
This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 3-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.


Shanghai Balance Automotive Equipment Co., Ltd.
  • Product Code: M-BS0300G Large-Scale Bus Wash Machine
Applicable Car TypesBuses / Large passenger transport vehicles / Container trucks (excluding roof washing)
Max.Washable Car Dimensions(L*W*H)(Unlimited length)  × 2.8 × （3.5~4.2）
Single Car Wash Time55~60 vehicles / hour
Single Car Shampoo ConsumptionN/A
Single Car Power ConsumptionAround 0.18 degrees/vehicle
Single Car Power ConsumptionAround 120L/vehicle
Machine Dimensions(L * W * H)6m × 4.28m × 5m
Installation Dimensions(L * W * H)7.6m × 20m (Ensures Crane Working Height)
Rail LengthN/A
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine:3ph AC380V 50Hz
Rated Power of Machine:8.45kW
Power of Top Brush Rotation Motor0.75kW*1
Power of Top Brush Lifting MotorN/A
Power of Side Brush Rotation Motor0.75kW*2
Side Brush Opening and Closing MotorN/A
Small Brush MotorN/A
Travelling MotorN/A
Submersible Pump Motor2.2kW*1
Water Pump Pressure0.6MPa
Power of High-pressure Water Pump Motor4kW*1（Optional）
Pressure of High-pressure Water Pump2MPa（Optional）
Product Models M-BS0300G
Brush System Top Brush 1
Side Brush 2
Small brush N/A
Material of Brush Nylon brush
Wash Liquid System Car Wash Liquid N/A
Travel system N/A
AGV collision protection N/A
Control system Mitsubishi PLC control system
Remote control Optional
Display 10" LCD Touch Screen
Car wash quantity tracking Standard
Fault self-diagnosis Standard
Smart parking guidance  Standard
Overall structure Hot-dip galvanizing of welded steel frames
Multi-stage submersible pump Standard(Water pump pressure 0.6MPa）
High-pressure water pre-rinsing Optional
Intelligent low-temperature start-stop system Optional
Voice broadcast system Optional
Customer-supplied water tank specifications 3 Tons
Customer-supplied air compressor specifications 2.2kW, 120L, 0.8MPa

The M-BS0300G Bus Washer is a vehicle wash machine designed especially for large vehicles. Installing the system reduces driver workload and work hours, thereby improving the working environment. In recent years, the system has been increasingly adopted in Public transport (also known as public transportation, public transit, mass transit, or simply transit) centers.

This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 3-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.

Product Features:

  • Suitable for bus/double-decker bus/van washing
  • Vehicle-contour self-detection tech gives all-around cleaning

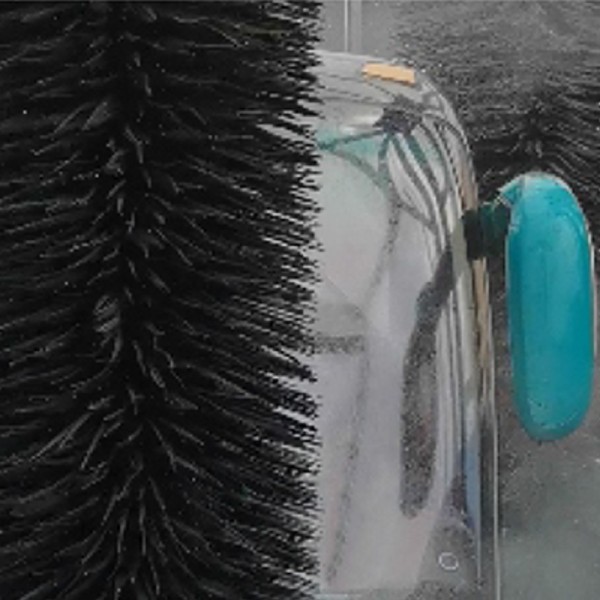

  • Rearview mirror protection
  • The enlarged washing range washes off the sand and dirt completely
  • Fully monitoring the washing state
  • The precise judgment of malfunction types or location
