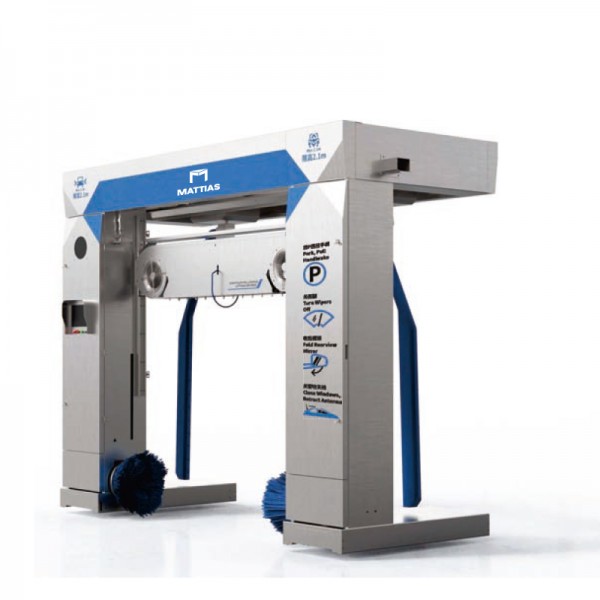

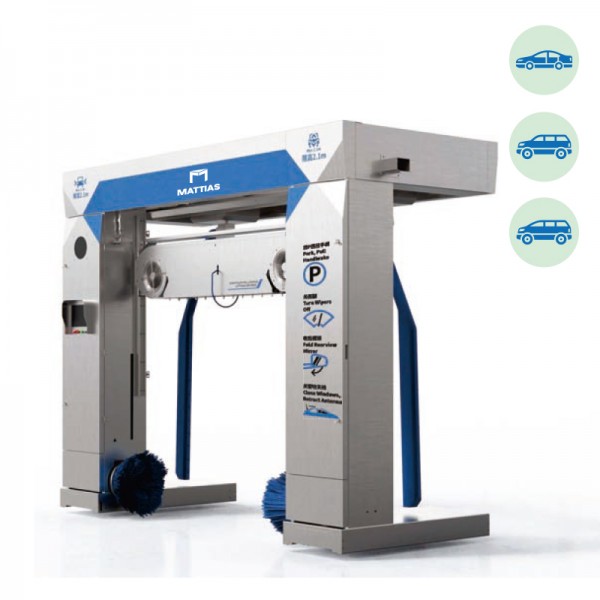

M-LM216 Rollover Touchless Car Wash Machine
M-LM216 Rollover Touchless Automatic Car Wash Equipment with high volume and high pressure water jets to knock off any dirt on the car. Comes with advanced features like Foam Shampoo, LAVA Foam, and Ultrasound vehicle sensing. High Speed equipment for quick car wash service. The car washing machine is an ideal touchless machine for both commercial and SUVs (up to 7 seats).
1. Curtain Foam Spraying
2. Dry System
3. Vehicle Width Detection
4. Antifreeze Draining
- Product Code: M-LM216 Rollover Touchless Car Wash Machine
| Car Wash Process | Standard Wash | (→) Undercarriage rinse(optional), (→) Curtain foam, (→) High-pressure water rinse, (→) Water wax spray, (→) Air drying | |
| Refine Wash | (→) Undercarriage rinse(optional),(→) Touchless car wash solution, (→) Dwell(adjustable time), (→) Curtain foam,(→) ,(→)High-pressure water rinse ,(→)Water wax spray ,(→) Air drying(twice) | ||

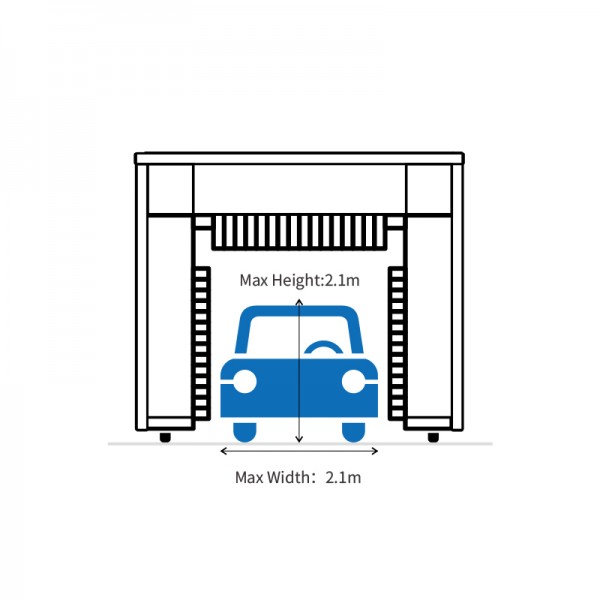

| Max.Washable Car Dimensions(L*W*H) | 5.3m*2.1m *2.1m |

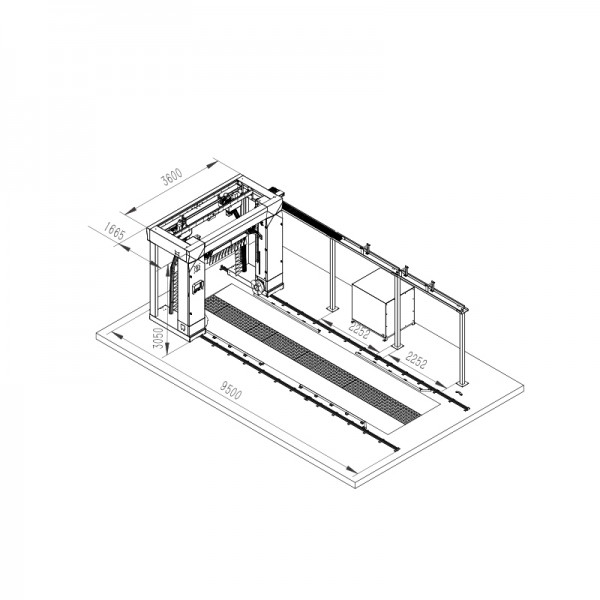

| Installation Dimensions(L*W*H) | 10*5 (Includes equipment box)*3.2 m 10*4.1(Withoutequipment box)*3.2m |
| Machine Dimensions(L *W* H) | 1.665m*3.6m*3.05m |
| Air Source Requirement | 0.6~0.8MPa |
| Rated Voltage | AC380V50Hz 3ph |
| Single Car Wash Time | 4min(Quick wash); 6.5min(Refine wash) |
| Single Car Shampoo Consumption | ≈156mL/vehicle |
| Single Car Water Wax Consumption | ≈156mL/vehicle |
| Single Car Power Consumption | ≈2 degrees/vehicle |
| Single Car Water Consumption | ≈250/vehicle-300L/vehicle |
| Rated Power | 45kW(Air-containing,water pumps) |
| Spray Boom Rotation Motor | Stepper motor*2 |
| Spray Boom Horizontal Movement Motor | 0.25kW*2 |
| Travel Motor | 0.25kW*2 |
| Plunger Pump Motor | 18.5KW*1+11kW*1 |
| Lifting Motor | 0.75kW*1 |
| Dryer Motor | 3kW*4 |
M-LM216 Rollover Touchless Automatic Car Wash Equipment with high volume and high pressure water jets to knock off any dirt on the car. Comes with advanced features like Foam Shampoo, LAVA Foam, Ultrasound vehicle sensing. High Speed equipment for quick car wash service. The car washing machine is an ideal touchless machine for both commercial and SUVs (up to 7seats).
High Pressure Touchless Inbay Automatic Car Wash Machine System. It comes with an onboard Advanced vehicle width detection system and antifreeze draining. The Equipment uses Ultrasound Sensors to sensor the vehicle parameters which are saved in the Controller Memory for precise movement of the equipment. Also, the equipment uses Direct Inline Drive technology for Jerk-free motion and long life of the Geared motors.
Product Features：
- Hot Dip Galvanised Structure
- Touchless Car Washing
- Support Complete Range of Cars and SUVs
- Easy to Operate and Maintain
- Contour-following air drying system
- Contour-following high-pressure wash
- Dual-arm contour-following high-pressure side wash
- Foam curtain application
