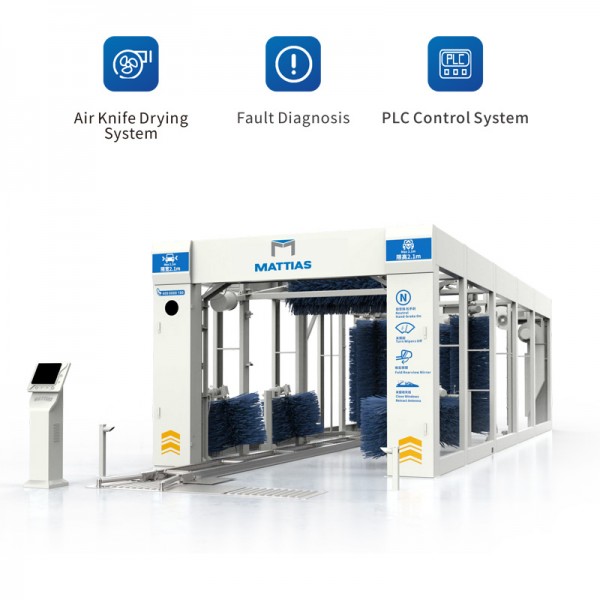

M-SD0900Q Pneumatic Tunnel Car Wash Machine

M-SD0900Q Pneumatic Tunnel Car Wash Machine

M-SD0900Q Pneumatic Tunnel Car Wash Machine

M-SD0900Q 12m Pneumatic Tunnel Car Wash Machine to wash approximately 55 – 60 cars per hour. This is a suggestive configuration. You can configure Mattias Conveyor Car Wash Equipment as per your specific requirements. You can add or remove systems to cater to your local requirements.

Standard Features

Air Knife Drying System
Fault Diagnosis
PLC Control system


Shanghai Balance Automotive Equipment Co., Ltd.
  • Product Code: M-SD0900Q Pneumatic Tunnel Car Wash Machine
Machine Dimensions(L*W*H)11.8 * 3.8 *3.44m
Installation Range (L*W*H)11.8 4*(>4m)
Air Pressure0.75-0.9Mpa
Total Motor Power39.63kW
High Pressure Oscillating Water Motor0.2kW*2
Small Brush Motor0.37kW*4
Top Brush Rotation Motor0.75kW*1
Top Brush Lifting Motor0.75kW*1
Side Brush Rotation Motor0.75kW*4
Side Brush Opening & ClosingMotor0.2kW*2
Side Brush Travelling Motor0.2kW*1
Top Dryer Motor5.5kW*2
Conveyor Motor1.5kW*1
Side Dryer Motor5.5kW*2
Top Dryer Lifting Motor0.75kW*1
High Pressure Pump Motor4kW*1
Submersible Pump Motor2.2kW*2
Side Horizontal Brush Motor/
Drying Brush Motor(two specifications)/
Water Consumption≈160L/Car
Applicable Car TypeCar,SUV,vans (less than 7 seats)
Applicable Car size(W*H*L)2.1m*2.1m*Unlimited length
Consumption Of ShampooApproximately 30mL/car
Consumption Of Water WaxApproximately 30mL/car
Car Washing Time55-60 vehicles/hour
Management ModeSelf-diagnosis/wash quantity check/LCD display

M-SD0900Q 12m Pneumatic  Tunnel Car Wash Machine to wash approximately 55 – 60 cars per hour. This is a suggestive configuration. You can configure Mattias Conveyor Car Wash Equipment as per your specific requirements. You can add or remove systems to cater to your local requirements.

Any requirement of approximately 10 cars per hour or more during the peak hours should consider a conveyorised car wash option. The Mattias Conveyor Car Wash Equipment series has a robust conveyor and is hot dip galvanised for long life.

This M-SD0900Q tunnel car wash system has 9 brushes and will wash every aspect of a car, all while using less water and lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Product Features：

  • Air Knife Drying system: Fast and Efficient Air Drying;
  • Pneumatic Control for Continuous Car Washing: Wash 50-60 Cars Per Hour,8% Faster Than Competitors;
  • Compact Footprint:5.5% Smaller Footprint Than Competitors;
  • Tech-Forward and stylish: User-Friendly Design, Simple Operation.
