U-256PRO Tilting Type Tyre Changer With Help Arm System

Tags: tilt back tower tire changer

U-256PRO Tilting Type Tyre Changer With Help Arm System

Preserve your costly rims with this new economical leverless tire changer. The New! U-256PRO Leverless Tire Changer has tilt back columns which leaves generous room for operation. The leverless design enhances user safety and convenience. The assist arm makes dismounting low profile tires a breeze and the pneumatic locking hex shaft provides dependable and useful functionality. The U-256PRO is a tilting type tyre changer with a 28" turntable, 12-26" external clamping, and 16-28" internal clamping. It features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel positioning. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.


  • Product Code: U-256PRO Tilting Type Tyre Changer With Help Arm System

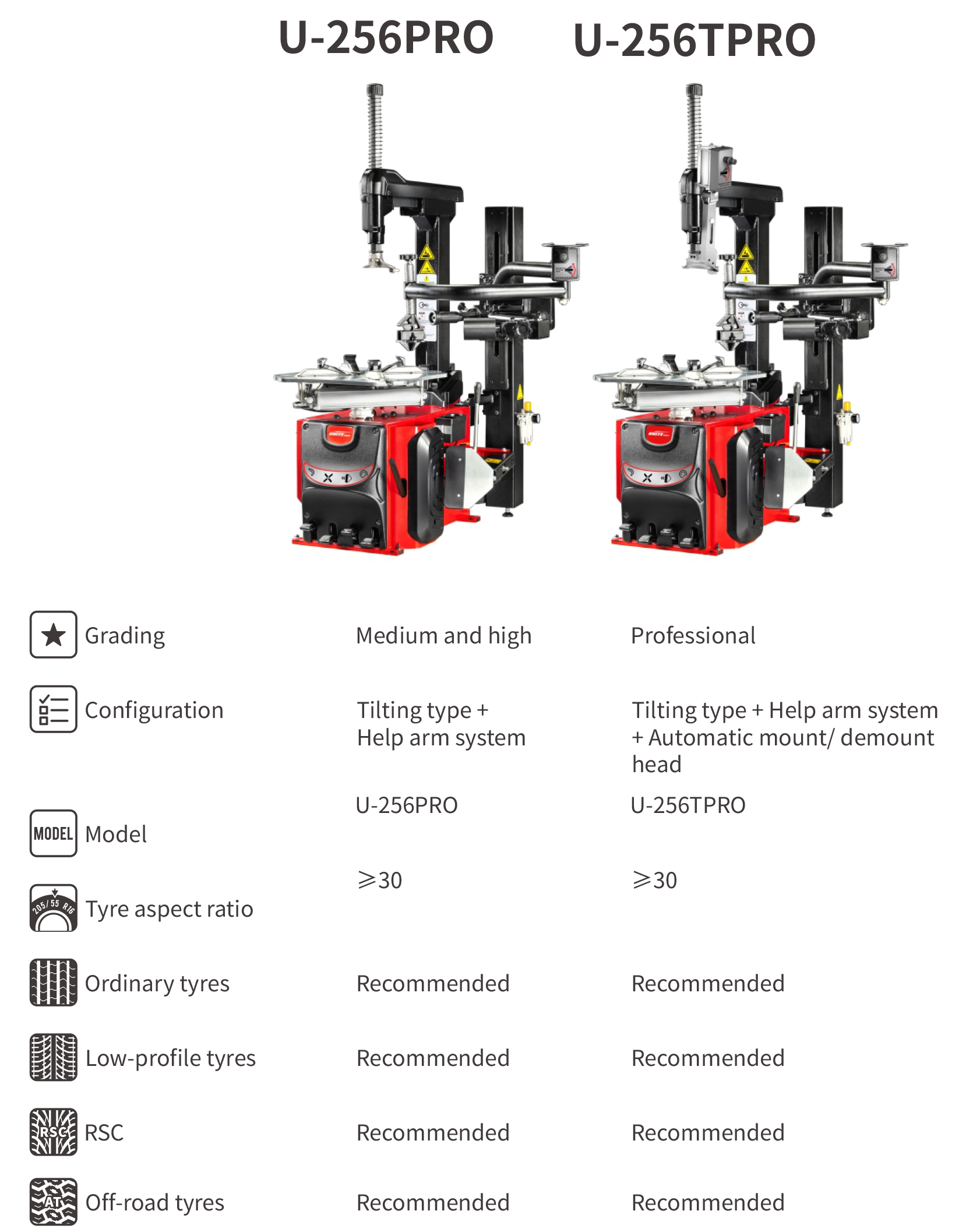

U-256PRO VS U-256TPRO Automatic Mount Demount Head Tilting Type Tyre Changer

The U-256PRO is a tilting type tyre changer with a 28" turntable, 12-26" external clamping, and 16-28" internal clamping. It features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel positioning. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.

Features:

1.28" Turntable
2.12~26" External clamping
3.16~28" Internal clamping

4. Independent Help Arm System

The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance of wheel positioning, bead pressing, bead lifting and loosening, and other functions.

  • roller-bead pressing
  • roller-bead lifting
  • 360° rotatable combination tyre pressing head-bead pressing
  • 360° rotatable combination tyre pressing head - quick wheel clamping or off/on from the turntable

5. Plastic Protector
Triple protection, avoiding scratches on the steel ring

  • plastic mount/demount head protector;
  • plastic jaw protector;
  • bead breaker shovel protector.
Tire Changer
Product Fully-automatic tilt back tower
Product Code U-256PRO
External clamping 12~26"
Internal clamping 16~28"
N/G weight 285/330 kg (628/728 lbs)
Package dimension 1130*900*950mm (3.7*3.0*3.1ft)
Air supply pressure 8-10bar (116-145 psi)
Optional power supply 110V 1PH / 220V(1/3PH)/380V3PH
Noise Level ≤75 dB
